Mitsubishi Inverter Heat Pumps in Dana Point Homes

Why Mitsubishi Inverter Technology Changes the HVAC Game

Homeowners across Dana Point are making a fundamental shift in how they heat and cool their properties. Single-zone Mitsubishi mini-split installations typically cost $3,800 to $6,800, with two- to three-zone systems ranging from $6,500 to $11,500, and larger multi-zone setups reaching $9,500 to $15,500 or more. The outdoor condenser unit pictured above sits on a purpose-built composite pad, connected to an indoor air handler through refrigerant lines that deliver precise climate control without ductwork losses. Mitsubishi’s advanced inverter-driven compressors adjust output automatically to match the temperature you need, making their systems highly efficient. The technology represents a departure from traditional on-off cycling that wastes energy and creates uncomfortable temperature swings.

Inverter vs. Traditional Compressor: What Dana Point Homeowners Gain

Traditional air conditioners operate at full blast until the thermostat setpoint is reached, then shut off completely. This constant cycling creates several problems in coastal Dana Point homes where afternoon temperatures fluctuate and marine layer fog rolls in unpredictably. Mitsubishi Electric INVERTER® mini-splits are engineered to perform better, last longer, and use less energy than most conventional systems, with units being 40% more energy-efficient compared to conventional central HVAC systems. The compressor in the outdoor unit shown operates continuously at variable speeds, ramping up during peak demand and throttling down to maintain temperature with minimal energy draw.

The inverter-driven compressors make systems highly efficient by adjusting output automatically to match the temperature needed. For a $1.25 million median home value in Dana Point, this efficiency translates directly to lower operating costs and higher property value. Compared with older central systems or resistance heat, Mitsubishi inverter heat pumps often cut heating and cooling energy 30 to 50 percent. Homeowners in Capistrano Beach and Monarch Beach neighborhoods report dramatic reductions in summer utility bills after switching from aging central AC systems.

How Variable-Speed Technology Works

The outdoor condenser contains a DC inverter compressor that modulates refrigerant flow based on real-time demand. Rather than running at 100% capacity until the room cools, then shutting off, the system might operate at 30% capacity for hours, maintaining precise temperature control. Advanced Inverter Technology precisely controls compressor rotation speed, offering exceptional performance and reduced energy consumption, and during winter when outside temperatures are low, the compressor rotation speed is set 1.5 times faster than conventional models. This capability matters significantly in Dana Point’s mild winter climate, where heating loads are moderate but consistent.

Energy Savings That Scale With Home Value

With a median household income of $124,000 and high-value properties, Dana Point homeowners typically prioritize long-term return on investment over initial cost. A typical home might save about $720 to $1,200 per year with Mitsubishi systems, which equals roughly $10,800 to $18,000 over 15 years. These savings compound when you factor in avoided repairs on aging ductwork and the elimination of energy loss through leaky return plenums common in older Dana Hills homes.

Attic Air Handler Installation: What the Photos Reveal

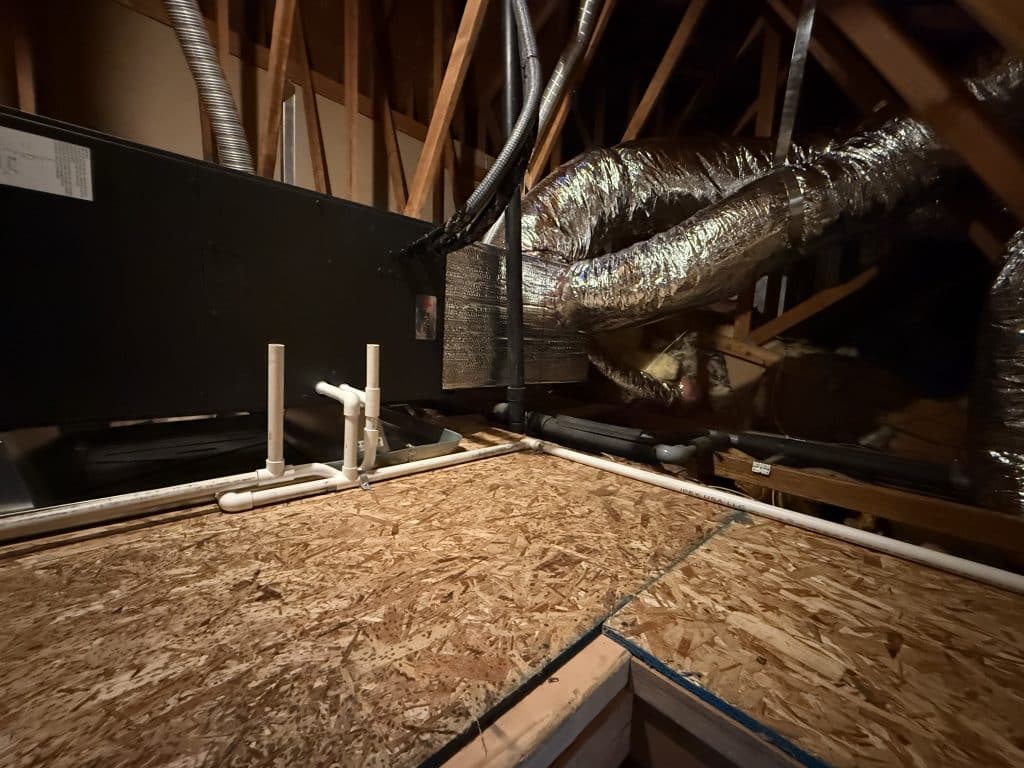

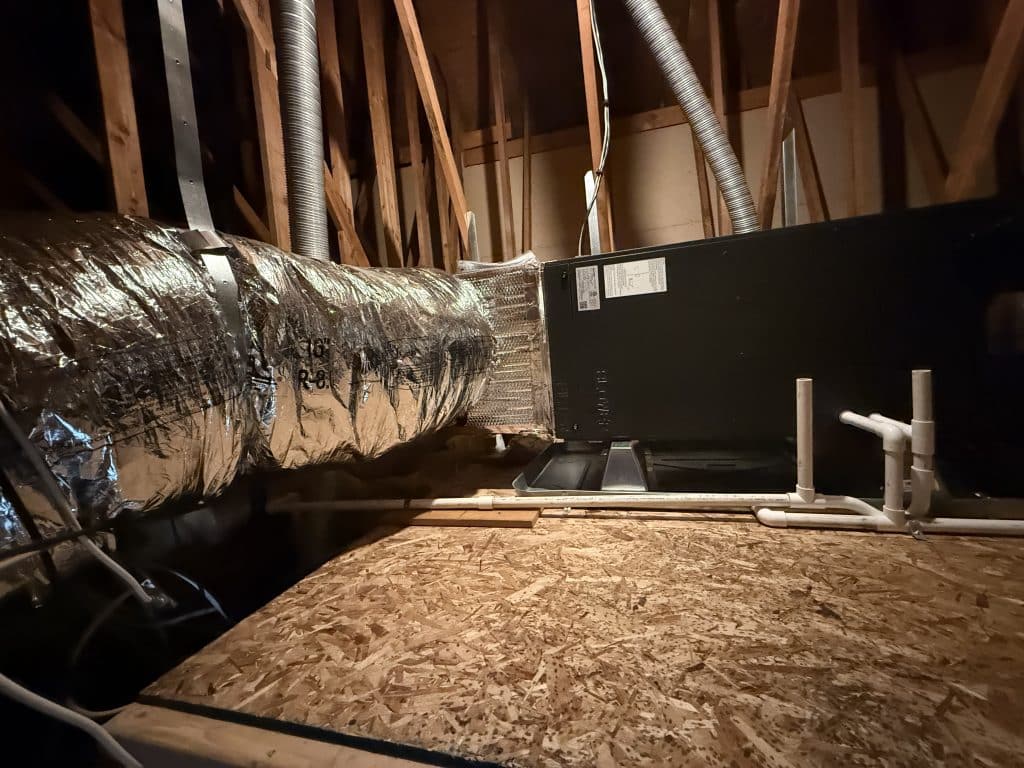

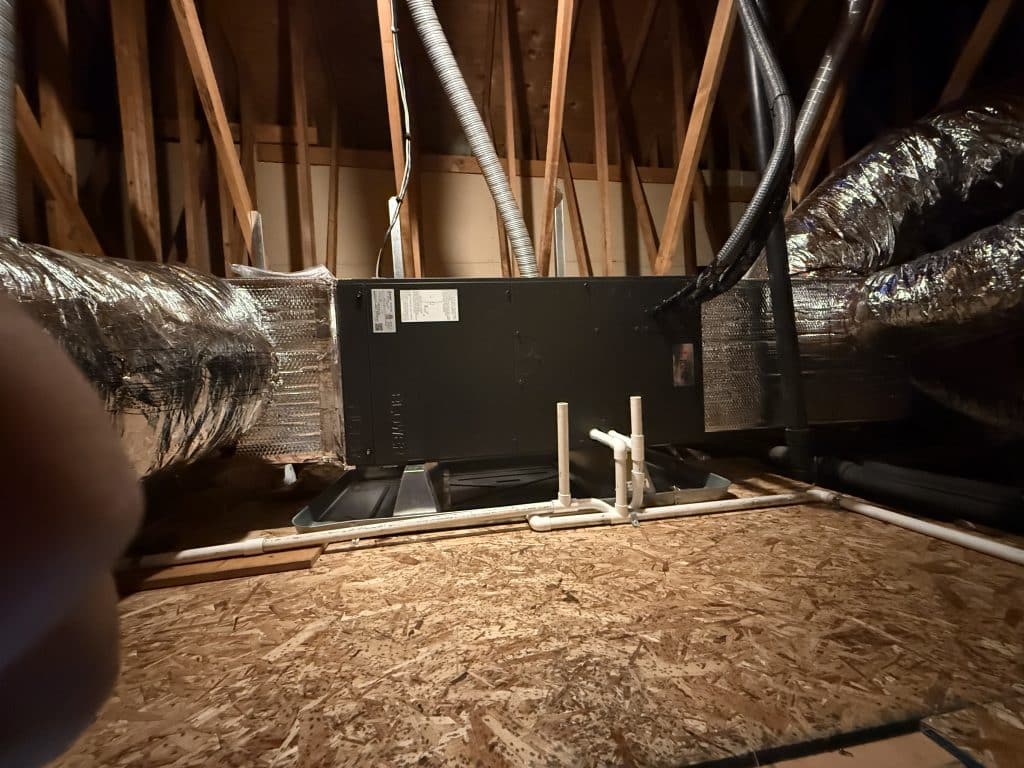

The attic installation photos show a black Mitsubishi air handler connected to silver flexible ductwork, demonstrating how inverter mini-splits can serve as ducted or ductless systems. Mitsubishi High Efficiency Heat Pumps are designed to connect directly to your existing ductwork, making them compatible and easy to install. This versatility gives Dana Point homeowners options: install wall-mounted heads in specific rooms, or connect to existing duct systems for whole-home coverage. The unit’s compact footprint fits in tight attic spaces common in coastal California construction.

Homeowners experience savings of up to 50% on cooling and between 20%-50% on heating with a high efficiency heat pump versus traditional furnace units, and these systems are built to perform in the toughest climates with temperatures down to -22°F. While Dana Point rarely sees freezing temperatures, the Hyper-Heating capability ensures reliable performance during occasional cold snaps that catch conventional heat pumps off guard. The system pictured includes proper condensate drainage and electrical disconnect, critical for coastal installation where salt air accelerates corrosion on improperly installed equipment.

Installation Requirements for California Code Compliance

Dryer vents are prime sources for substances that clog outdoor coils and can cause corrosion, so condensing units must not be placed within five feet of a dryer vent, and this requirement is applicable to new installations and replacements. The condenser pad shown maintains proper clearance from building structures and provides stable mounting. If the ground is either soft or unstable, a pad provides a solid and stable base, whereas a stand may cause the unit to become unlevel over time. Coastal Dana Point properties with sandy soil benefit from composite pads that resist moisture and won’t crack like concrete.

Outdoor Condenser Placement: Engineering Meets Aesthetics

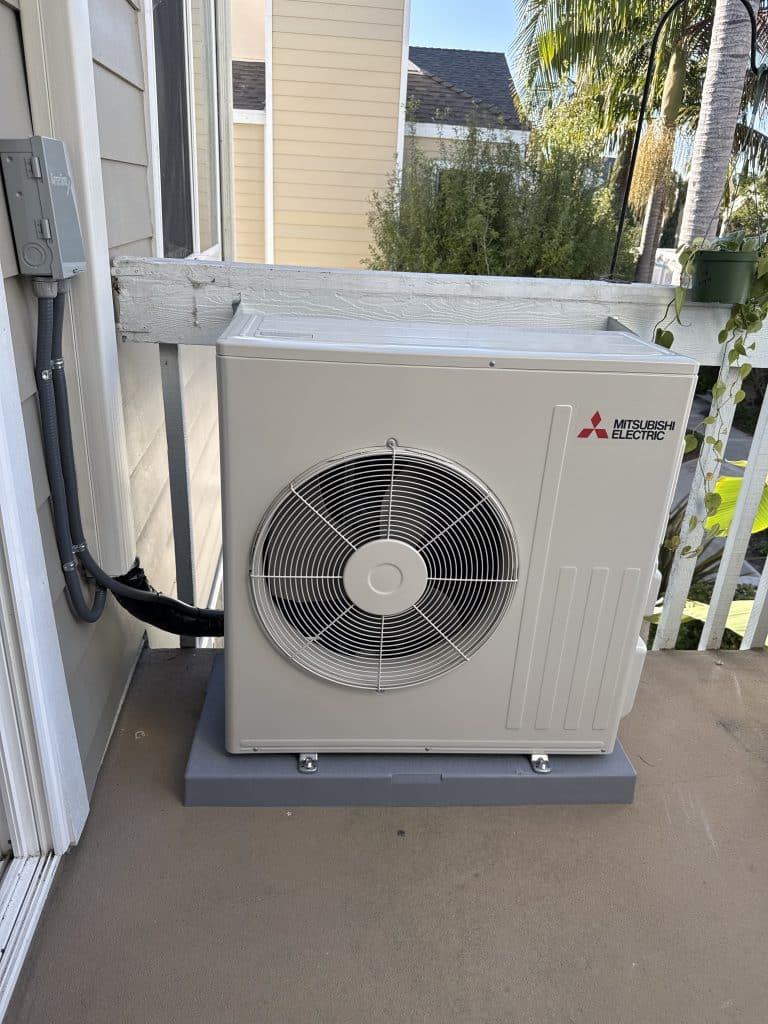

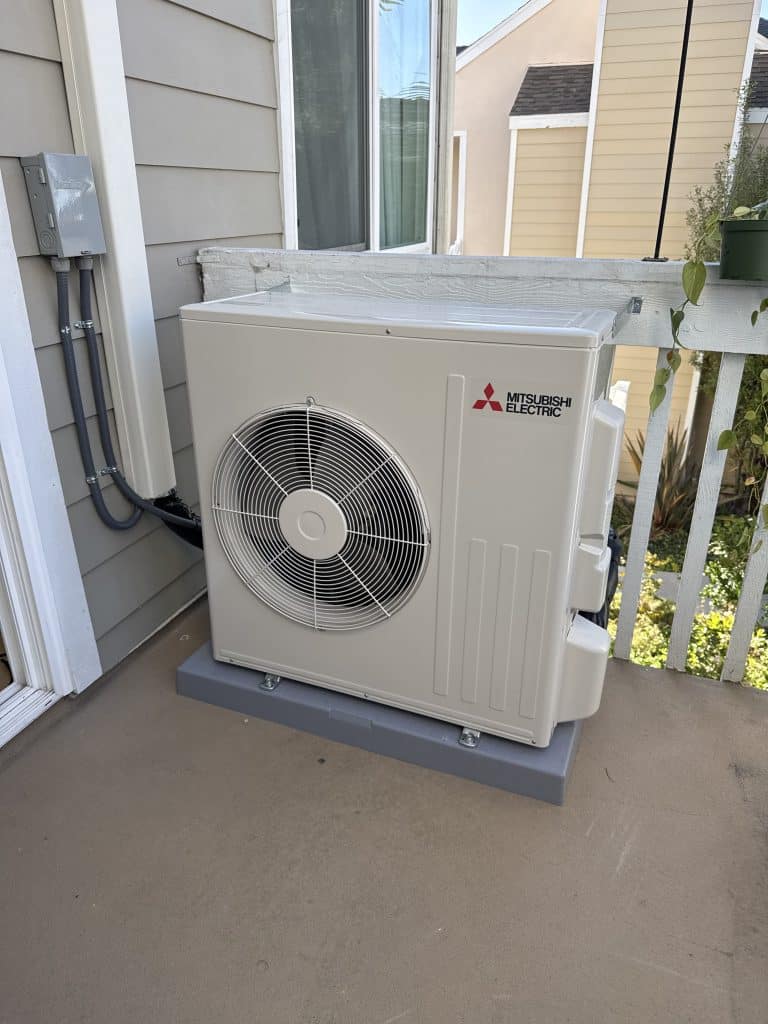

The Mitsubishi outdoor unit sits on a raised gray composite pad that elevates it above the deck surface, visible in the first two images. This placement serves multiple engineering purposes while maintaining the clean aesthetic Dana Point homeowners expect from high-value properties. The unit’s compact size—significantly smaller than traditional central AC condensers—allows installation in space-constrained areas near the home without dominating outdoor living spaces.

The system needs proper airflow and ventilation for optimum performance, and manufacturers specify minimum requirements. The location shown provides adequate clearance on all sides while keeping refrigerant line lengths short, maximizing efficiency. Mitsubishi Electric mini-splits are quiet, with outdoor units measuring an average of 45 decibels, compared to outdoor HVAC units that often generate between 70 and 80 dB, and indoor units operate even more quietly. This noise reduction matters enormously in Dana Point neighborhoods where outdoor entertaining and open windows are year-round lifestyle elements.

System Component	Traditional Central AC	Mitsubishi Inverter Mini-Split
Compressor Operation	On/off cycling (100% or 0%)	Variable speed (20%–100%)
Energy Efficiency	SEER 14–16 typical	SEER2 19–30+ available
Noise Level (outdoor)	70–80 dB	45–51 dB
Temperature Control	±3–5°F swings	±0.5°F precision
Energy Loss Through Ducts	20–30% typical	0% (ductless) or minimal (ducted)

Smart Controls and Zone Management for Coastal Living

Mitsubishi Electric mini-splits offer complete system control via the control panel on the air handler unit or remotely via the kumo cloud® app. This smartphone integration allows Dana Point homeowners to adjust temperatures before arriving home from work, set schedules that account for marine layer temperature drops, and monitor energy consumption in real time. Multi-zone systems let you direct cooling to occupied spaces while reducing output to unused bedrooms, a capability impossible with traditional ducted systems.

For homeowners with indoor air quality concerns in Dana Point, Mitsubishi systems include advanced filtration that captures allergens and particles without the dust accumulation problems inherent in traditional duct systems. The filters in both the outdoor condenser and indoor air handlers require regular cleaning but provide superior air quality compared to central systems that recirculate dust through aging ductwork.

Why Professional Installation Determines Long-Term Performance

The difference between a $4,500 installation and a $6,500 installation often comes down to proper refrigerant charging, electrical work, and attention to coastal installation requirements. Mini splits require a dedicated circuit and disconnect sized to the unit, and the final circuit size and voltage depend on the model, with most residential systems requiring 208/230V single-phase service. Undersized electrical service causes nuisance breaker trips and reduces compressor lifespan. The condenser shown includes a proper disconnect switch mounted within sight of the unit, meeting California electrical code requirements.

With proper installation and maintenance, Mitsubishi Electric heat pumps can last 15 to 20 years or more, and routine maintenance is simple with regular filter cleaning and annual professional service keeping systems running efficiently. For Dana Point’s salt-air environment, annual coil cleaning prevents corrosion that destroys conventional AC units in 8–10 years. Shalom Heating & Air has installed dozens of Mitsubishi systems in Dana Point homes, with proper attention to coastal installation requirements that generic HVAC contractors often overlook.

The Mitsubishi Hyper-Heating INVERTER comes with a 12-year compressor warranty and a 5-year parts warranty, and installation providers also offer workmanship warranties covering installation labor, with products requiring registration with Mitsubishi within 90 days of installation to activate the full warranty. Homeowners who skip professional installation to save money often void these warranties, turning a $5,000 system into a costly gamble. We’ve seen DIY installations fail within months due to improper refrigerant charge, inadequate condensate drainage, or electrical issues that expensive equipment can’t detect.

Ready to Upgrade Your Dana Point Home’s Comfort System?

Mitsubishi inverter heat pumps represent a significant investment in home comfort, energy efficiency, and property value. The installations shown demonstrate professional attention to detail that ensures decades of reliable performance in Dana Point’s coastal environment. Whether you’re replacing an aging central AC system, adding climate control to a home addition, or building new construction, inverter technology delivers measurable advantages over traditional systems.

Shalom Heating & Air specializes in HVAC services in Dana Point, with extensive experience installing Mitsubishi systems that stand up to salt air, marine layer moisture, and the performance expectations of discerning homeowners. Our technicians understand the specific challenges of coastal installations and size systems based on actual load calculations rather than rules of thumb. Call us at (714) 886-2021 to schedule a home assessment and receive a detailed proposal that includes equipment specifications, installation timeline, and warranty coverage. We’ll evaluate your existing system, discuss your comfort priorities, and design a solution that delivers the efficiency and reliability Dana Point homeowners expect from premium HVAC equipment.
